Soundcards used to be a requirement to enjoy games and media on your PC, but as motherboard manufacturers began to include better onboard audio, soundcards became less viable for the average PC owner. Today, soundcards are still more of a niche, only being picked up by serious audiophiles or those who require advanced features not offered by the motherboard.
The new Sound Blaster AE-9 follows suit, packing some serious hardware, but commands quite the price. The PCI-e soundcard is capable of 32-bit audio, and the companion audio control module (ACM) comes with a built-in microphone amplifier. Should you consider installing Creative's latest PCI soundcard inside your PC? TL;DR: yes, you should.
Audiophiles will love the Creative Sound Blaster AE-9
So what makes the Sound Blaster AE-9 so special that Creative charges so much for a soundcard? If you're unfamiliar with the AE series, this package comes rocking a 129dB dynamic range using a hi-res ESS SABRE 9038 DAC, supporting 32-bit 384KHz playback, alongside Xamp headphone amplification. What all this means is the soundcard and accompanying ACM has all the necessary tech to create crystal clear audio.

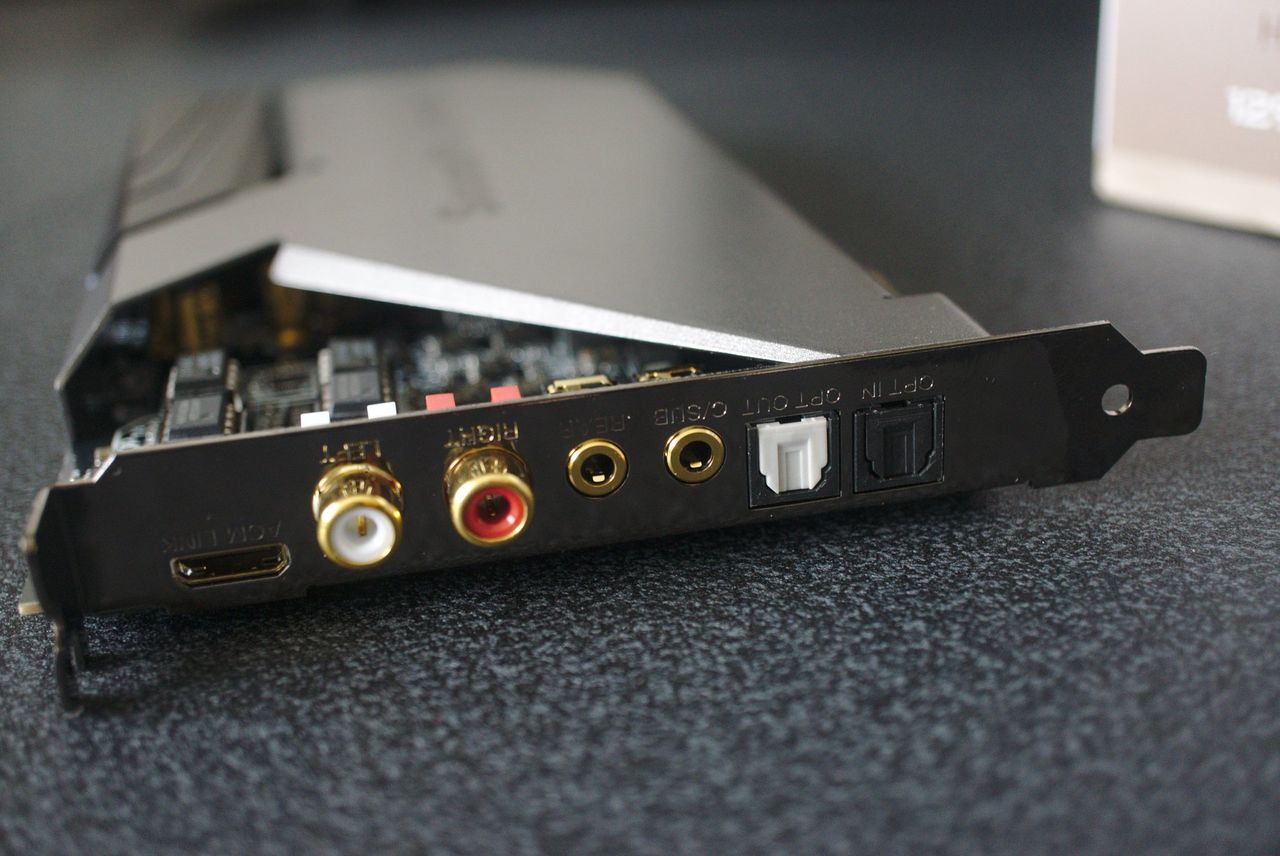

The Sound Blaster AE-9 looks good and houses some serious audio tech.
But that's not all. Just looking at the specs sheet is mind-boggling. Creative bundled numerous processing tech onto the card, including an Acoustic Engine, Dolby Digital Live, and even DTS Connect Encoding for analog outputs. The soundcard and ACM are well-designed, sporting a premium silver finish. The soundcard is connected to the external ACM via a link, but houses the following ports:
- Front Left
- Front Right
- Center / Subwoofer
- Op-amp Pair 1 (Single DIP)
- Op-amp Pair 2 (Dual DIP)

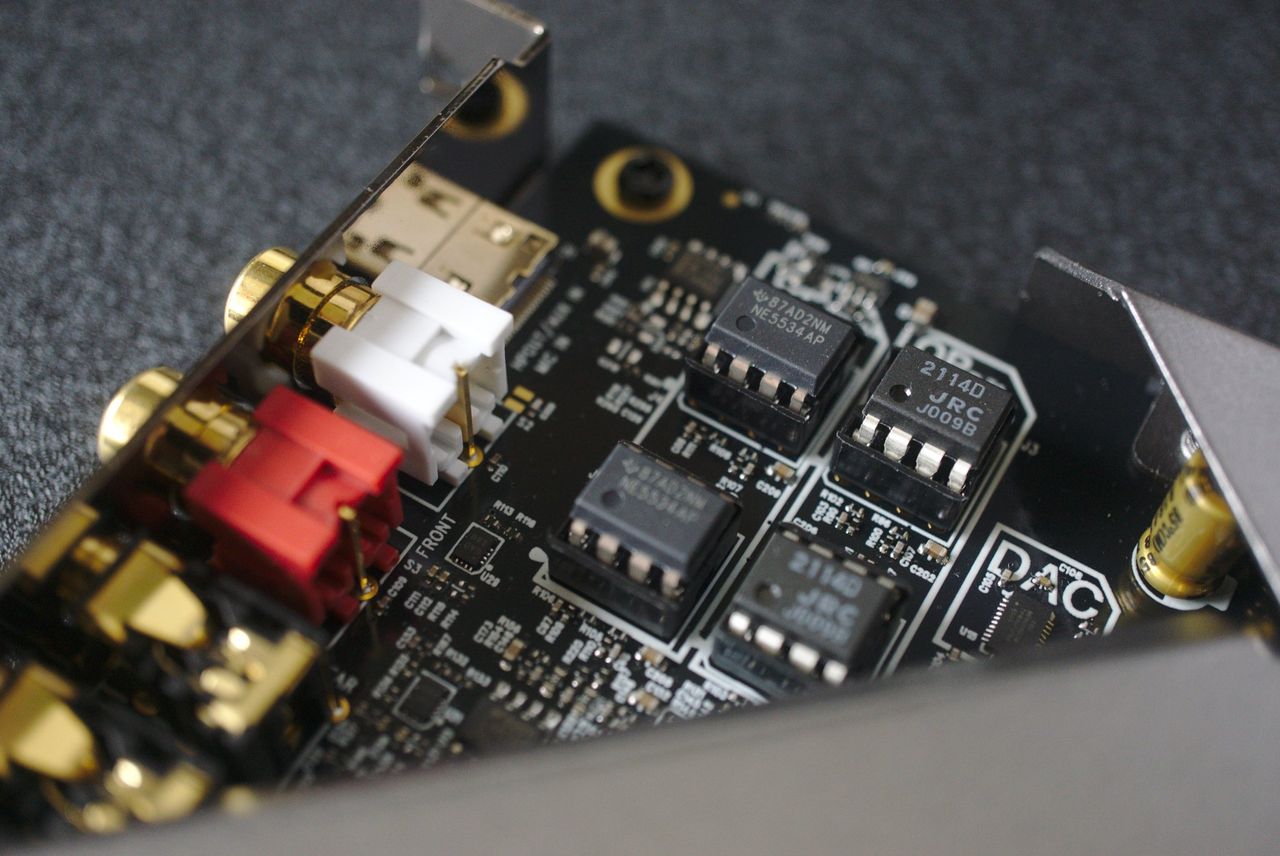

Between the ACM and soundcard, you'll be able to hook up all your favorite audio hardware. To make all this work, Creative uses an ESS SABRE-class 9038 DAC, as well as high-grade Nichicon "Fine Gold" capacitors and swappable op-amps. Utilizing premium equipment, from headphones and microphones all the way down to transistors makes for a premium audio experience, and it works with the Sound Blaster AE-9.
Creative even works to eliminate outside interference, namely, your power supply. When pushing your GPU and other components to their limits, you may encounter what's known as ripple noise, which is amplified along with microphone signals. To shield against this, the company's ClearLine technology to emulate the benefits of a desktop mixer by eliminating voltage rail interference along the microphone path. It's clever stuff and works to make you sound even better.
Alongside the +48V phantom power button, volume and status display, SBX button, and control knob, the ACM has the following ports:
- XLR / 6.3 mm Microphone-in
- Headphone Impedance Selector Switch
- 3.5 mm Microphone-in (Mono)
- 3.5 mm Headset / Headphone-in
- 6.3 mm Headphone Jack
- AUX-in (Left / Right)
Lastly, we have discrete 5.1 channels and 7.1 virtual surround sound to play with. The Sound Blaster AE-9 is fully kitted out. The sheer number of available ports allows you to connect a bunch of equipment.
Creative's Sound Blaster AE-9 is simply wonderful.
Creative gives you all the tools you need to manage your audio too. The ACM houses buttons and knobs to adjust volume, switch between outputs, and even configure headphone impedance. Should you need to configure something a little more advanced, the Sound Blaster Command software is the destination where you'll be able to change literally everything on the Sound Blaster AE-9. From profiles to EQ manipulation, the Command suite does it all.
Supporting up to 600-ohm headphones, you'll be able to use more budget-orientated headsets up to audiophile rated cans. As well as nailing the more critical main features, Creative even went a step further and included extras like Scout Mode, which allows the software to enhance specific audio tracks within games, namely footsteps. It worked more often than not, and when it did, it was incredibly useful.
I tested the sound output of the Sound Blaster AE-9 with the Sound Blaster Katana soundbar, SteelSeries Arctis Pro headset, Sennheiser HD 650 headphones, and Plugable Performance Onyx HS53 headset. For microphones, I used the trusty Behringer C-1 hooked up to the DAC directly to make use of the built-in ghost amp. The resulting sound quality of the Sound Blaster AE-9 is simply incredible.
Whether you're playing the latest games like PUBG and need to hear absolutely everything, especially when there are other sound effects currently being played, or want to enjoy your favorite collection of synthwave (Dance With The Dead's Neo Tokyo remix sounds superb), the bass, lows, mids, and even highs were not distorted at all when paired up with the Katana, Arctis Pro, and HD 650. The more affordable Onyx HS53 didn't sound as good as our other test cups, but that's to be expected.
You're only going to want to buy the Sound Blaster AE-9 if you own premium headphones. Unfortunately, using a condenser microphone with the ACM wasn't equally impressive, though it was more difficult to hear any noise coming through, it's not perfect. Compared to a rather budget-friendly mixer and pre-amp module, it was difficult to tell the difference, which is not what you want to see in a $350 premium sound setup.
It feels as though Creative could have spent a little more time on the input side of things with the AE-9, though for all things output it's phenomenal. The accompanying ACM with various controls makes it easy to switch between headphone impedance, manage volume levels, and output. Creative's software suite — when you actually need to use it — is also very good.
The Creative Sound Blaster AE-9 has only a few minor drawbacks
While it's not really a drawback of the soundcard since it requires additional power not supplied through the PCI slot, you will need to have a spare 6-pin PCI cable from your PSU to hook up the Creative Sound Blaster AE-9. If you already have a high-end GPU, you may not have a spare connector, which will require you to pick up an additional cable for your power supply — something to bear in mind.
There's also the price, which is way beyond the budget of many consumers and PC owners. That said, if you're using high-quality, premium headphones and other audio equipment, you'll not see money as an issue when looking for a soundcard or DAC for Windows. It truly is worth the asking price, however.
Should you buy the Creative Sound Blaster AE-9?
If you want to take your PC audio experience to the next level, the Creative Sound Blaster AE-9 is worth considering, especially if you can overlook the rather high price. The advanced features like a built-in microphone AMP into the DAC, as well as ClearLine technology and the ability to customize how the sound is pumped to your favorite cans, makes it great for streamers, gamers, and audiophiles.
The built-in audio on your PC motherboard is usually just good enough, but sometimes you want to really get immersed in games and enjoy movies how the production teams intended. That's where something like the Sound Blaster AE-9 really makes a difference. What's more is if you already own an older Creative soundcard, the company is offering 15 percent off the Sound Blaster AE-9 if you wish to upgrade.
For those who are serious about audio
PC Motherboard onboard audio quality has improved immensely, but having a dedicated sound card like the Sound Blaster AE-9 unlocks a whole new dimension of sound.
