How to use an old router as a Wi-Fi extender

TP-Link Archer A7
TP-Link Archer A7 (Image credit: Windows Central)

Your old router can widen your home network with a few easy tweaks. If you find that your Wi-Fi or wired internet connection doesn't spread out wide enough, a single router can take your signal and spread that out even further. This could help a ton, especially if you want to utilize internet-hungry devices like the Dell XPS 17 9710. What else were you going to use the old router for anyway? Here's how to use an old router as a Wi-Fi extender.

How to prepare your old router

  1. First, you should restore your old router to factory settings.

Linksys Router 2-20e2

Source: Windows Central (Image credit: Source: Windows Central)
  1. Visit your router's settings page via typing 192.168.0.1 or http://www.routerlogin.net into a web browser.

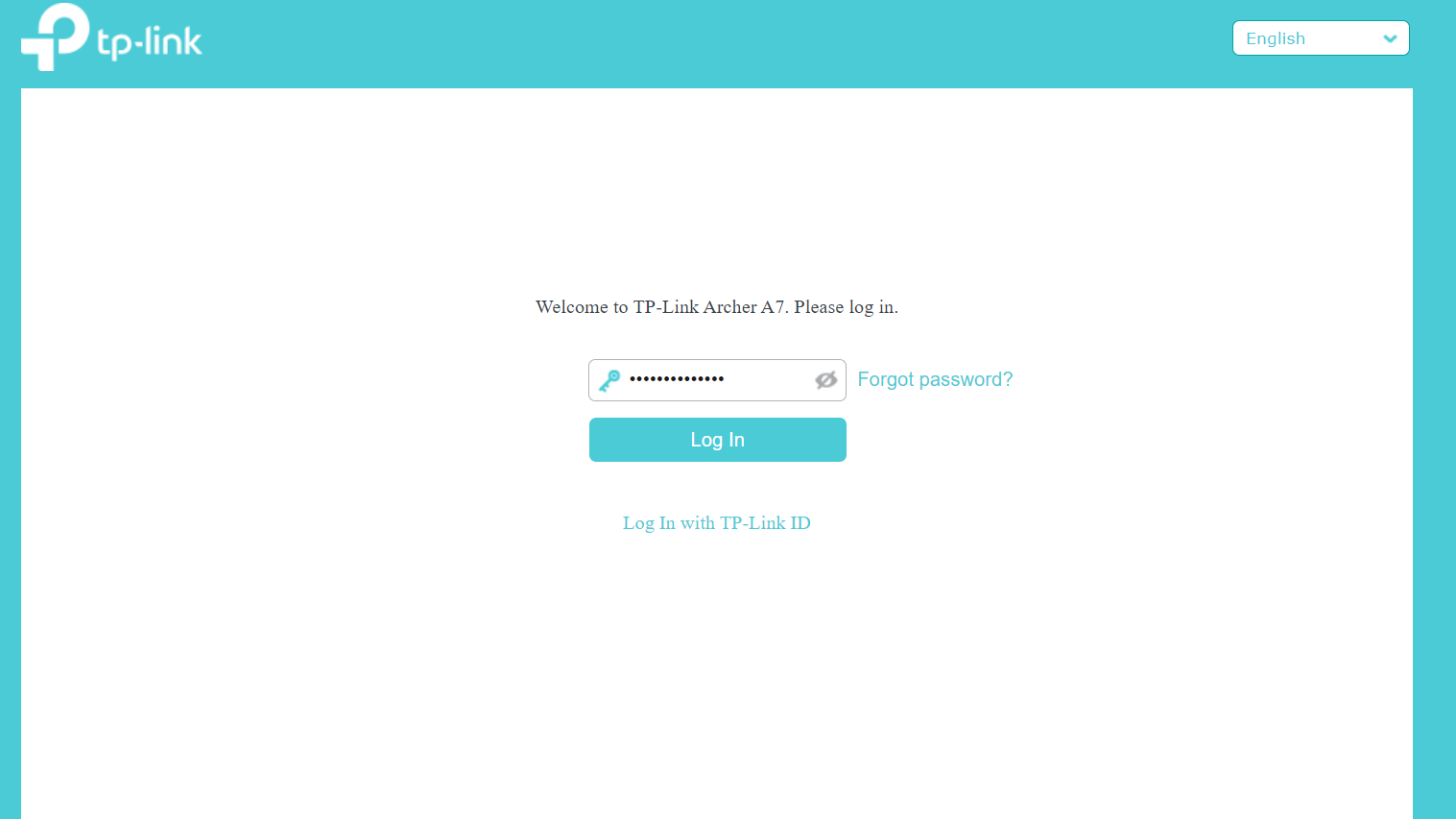

Tp Link Login Password

Source: Windows Central (Image credit: Source: Windows Central)
  1. Sign in with your username and password. If you don't know these, look up the default ones in a manual or online.
  2. Once you're in, look for advanced, system tools, or administration options.

Tp Link Settings Factorydefault

Source: Windows Central (Image credit: Source: Windows Central)
  1. Within that, you'll likely see an option that says something like restore to factory settings. Click that!
  2. Let the router reboot.
  3. Head back into the router settings and look for the administration option again.
  4. Update the firmware either via the router's automatic option or by searching for it online.

TP-Link Firmware Upgrade Setting

Source: Windows Central (Image credit: Source: Windows Central)

How to use your old router as a Wi-Fi extender

  1. Plug an Ethernet cable into your old router's WAN or internet port.
  2. Plug the other end of that Ethernet cable into any of your newer router's ports.
  3. Head to a browser and open your old router's settings.
  4. Within its settings, look for internet, bridge, or repeater settings.
  5. For TP-Link routers, the option you need is under Operation Mode. Click Operation Mode.

Tp Link Settings Operationmode

Source: Windows Central (Image credit: Source: Windows Central)
  1. For Netgear routers, Bridge mode is under Advanced and Advanced setup.

Netgear Change Password Step

Source: Netgear (Image credit: Source: Netgear)
  1. For Linksys routers, Wireless Bridge mode is under Internet Settings.
  2. Change the Network name (SSID) if prompted.
  3. Save settings.

With these settings in place, your old router will successfully take the Wi-Fi signal from your new router and spread it out where it's located. Unlike a mesh router network, you will have to manually connect to the old and new router separately. But even so, it's a great way to use both an old piece of technology and give you more coverage in areas your Wi-Fi wouldn't otherwise reach.

Our top equipment picks

The TP-Link Archer A7 is a great router to use as a Wi-Fi extender. Whether you already own one or can afford one, it offers an incredibly simple process for setting it up as an extender. If it's an upgrade to your current router, it would also be a great option to extend your connection out from.
