Lenovo ThinkPad T580 review: Big T-series performance

Windows Central Recommended Award

Lenovo makes a wide range of ThinkPads, with the T-series and X-series models sitting near the top of the pile. I have here the T580, which offers a 15.6-inch display (the rest of the T-series ThinkPads are set at 14 inches), full keyboard with number pad, hot-swappable battery system, and a bunch of the extra security and ease-of-use features you expect from a business laptop.

I used the ThinkPad T580 for about a week, coming away generally impressed but not without a few reservations. Let's take an in-depth look at this big laptop and see whether or not it's the right device for you.

About this review

Lenovo loaned Windows Central a review unit of the ThinkPad T580. This specific model has inside an 8th Gen Intel Core i7-8650U vPro processor (CPU), 16GB of DDR4-2400MHz RAM, a 512GB PCIe M.2 solid-state drive (SSD), and a 15.6-inch FHD (1,920 x 1,080) touch display. This specific configuration costs about $1,770 from Lenovo. Models start at about $980.

See at Lenovo

Lenovo ThinkPad T580 hardware and specifications

Swipe to scroll horizontally
CategorySpec
Processor8th Gen Intel Core i7-8650U vProQuad-core
Display15.6-inch FHD (1,920 x 1,080) IPSTouch
RAM16GB DDR4-2400MHz
Storage512GB Samsung PM981PCIe M.2
GraphicsIntel UHD Graphics 620
PortsThunderbolt 3USB-C 3.1Two USB-A 3.0HDMI 1.4bRJ45 EthernetSD card reader3.5mm audioEthernet side dock extension
SpeakersDual 2W speakersDolby Audio Premium
WirelessIntel Dual Band Wireless-AC 8265(2 x 2)Bluetooth 4.1Optional Fibocom L850 LTE
CameraFront-facing 720p
SecuritydTPM 2.0FIDOThinkShutterKensington lock slot
BiometricsFingerprint readerOptional IR camera
KeyboardFull with number padBacklit
TouchpadPrecisionTrackPoint system included
Battery32 Wh (internal)24 Wh (external)Optional 48 Wh and 72 Wh external
WeightFrom 4.29 pounds (1.95 kg)
Dimensions14.40 inches x 9.95 inches x 0.79 inches(365.8 mm x 252.8 mm x 20 mm)

Lenovo ThinkPad T580 design and features

The ThinkPad look hasn't changed much, especially in the T-series corner, but that's OK. The outside has a soft-touch finish and the inside, around the keyboard and touchpad, is more of a hard plastic. Just about everything here is made from glass-fiber reinforced plastic, but it still weighs in at 4.29 pounds (1.95 kg) and up depending on whether you opt for the 4K display or a larger external battery. It's not the most portable laptop — it's also 0.79 inches thick — but its performance I think makes up for the size.

The plastic body has a bit of flex when twisted, but the lid is held sturdy with two tight hinges. Working in a moving vehicle shouldn't be a problem, and the T580 has undergone 12 MIL-STD 810G certification tests to certify that it can put up with the perils of the road, like heat, cold, shock, vibration, and humidity. Optional LTE support makes this laptop more mobile so that that extra durability will come in handy.

The T580 is a big business with stellar performance, a good selection of ports, and security features users and admins alike can appreciate.

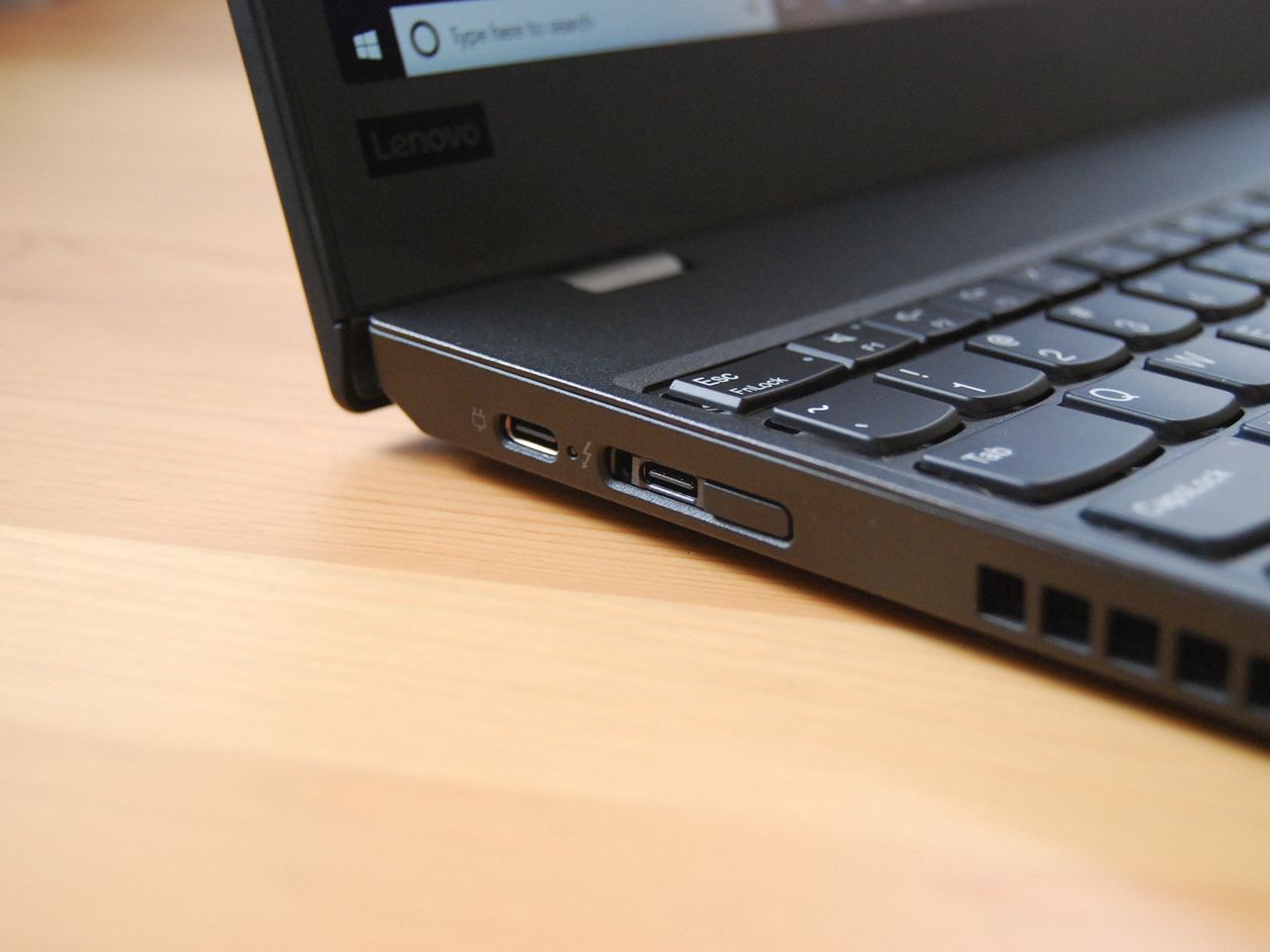

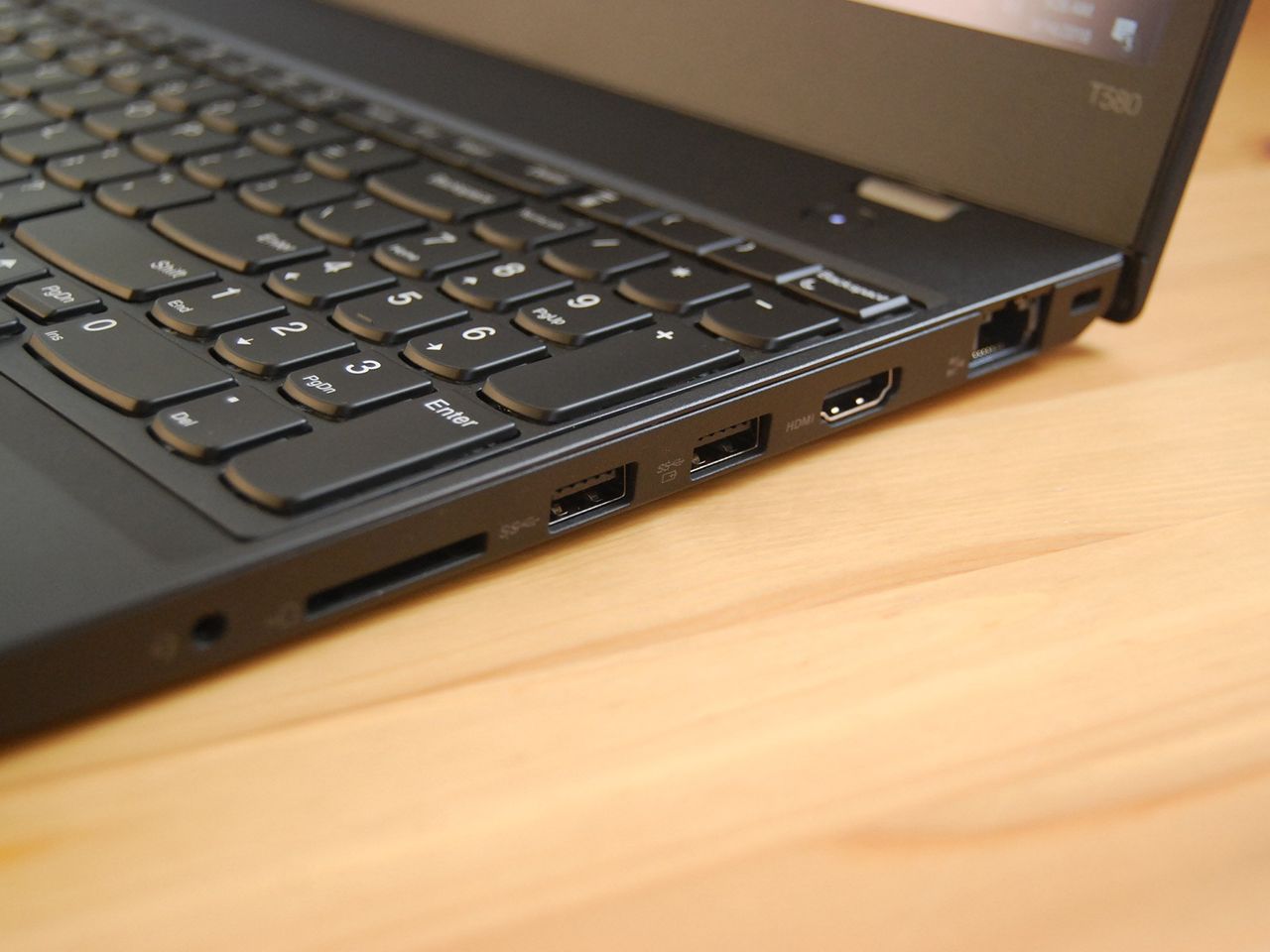

Most ports are located on the right side of the laptop, including Ethernet, HDMI, two USB-A, an SD card reader, and a 3.5mm audio jack for headphones. There's lots of spacing between so you won't get any overlap when trying to use multiple peripherals. On the left side is a USB-C port that doubles as a charging port, and next to it is a Thunderbolt 3 port coupled with a Lenovo Ethernet side dock extension port.

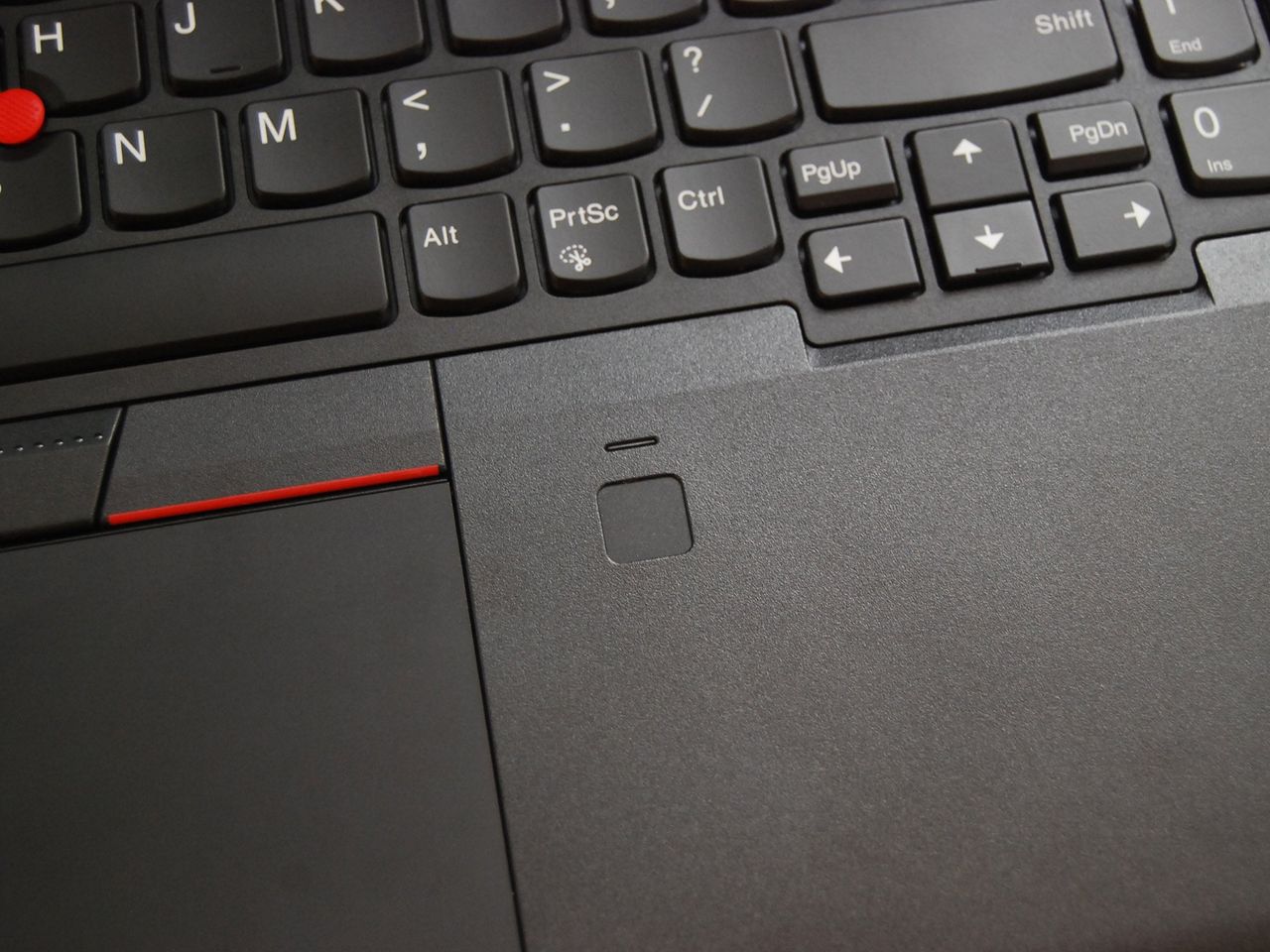

The T580 comes with some built-in security features that users and admins alike an appreciate. This model includes a vPro CPU for remote management, and it likewise has a discrete Trusted Platform Module (dTPM) 2.0 chip for extra encryption and security. A fingerprint reader is set into the right palm rest, out of the way of your hand while typing. I tested it out plenty of times during use, and while it might seem like it takes an extra split second to log in compared to some other systems, it worked every time. There is an optional IR camera available (this model didn't have it), though with face recognition you'll lose the ThinkShutter, which is a quick and easy way to hide your 720p webcam without bits of paper or sticky tack.

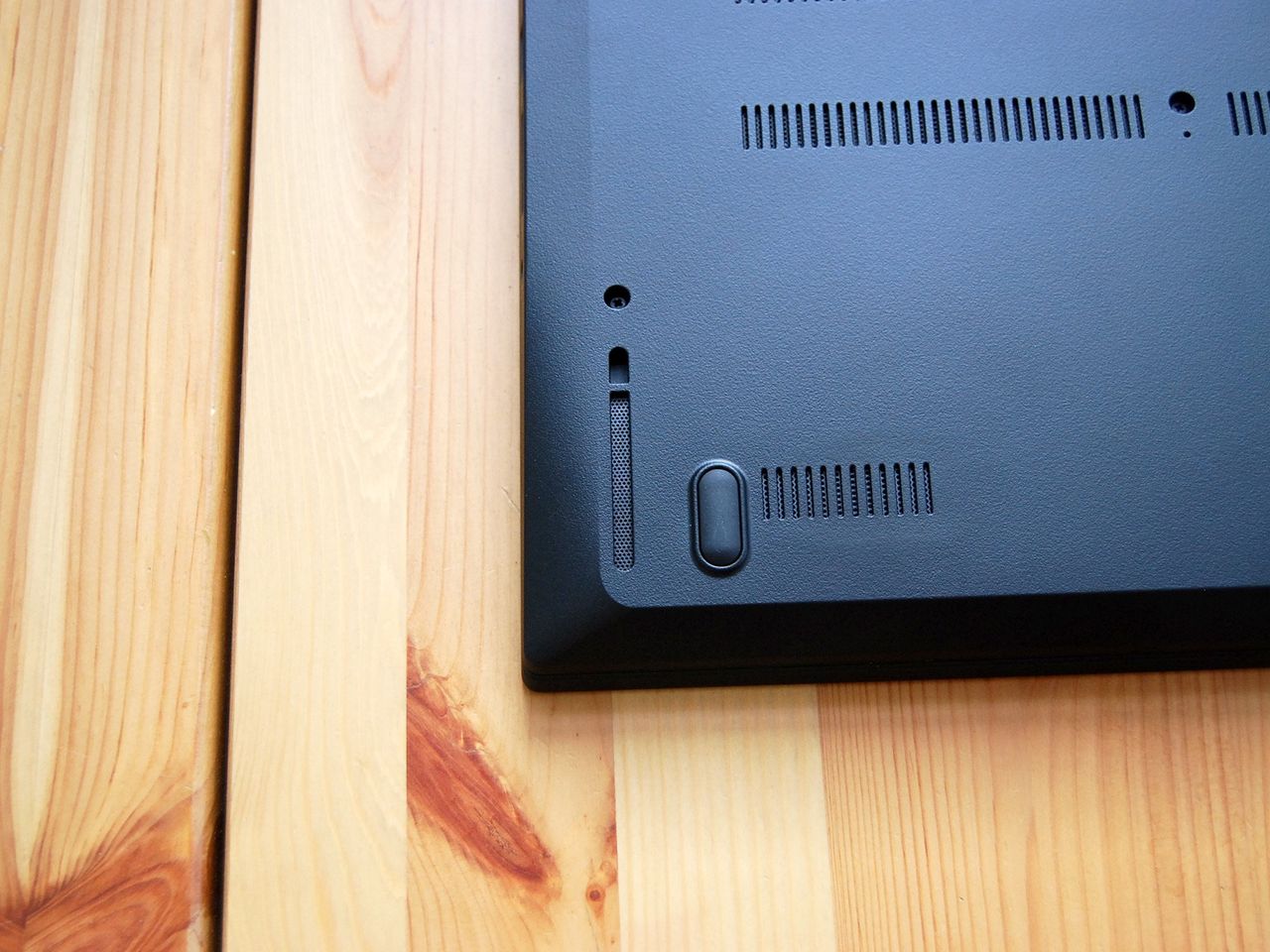

To remove the back, there are eight Philips-head screws to remove. Once inside, you have easy access to RAM, SSD, and Wi-Fi card. This means you can save some money now by choosing lesser hardware at checkout and upgrading later when you come across a sale. Two speakers also inhabit the back of the laptop, and in testing, they're above average. They get plenty loud without distorting and provide a full sound.

Lenovo ThinkPad T580 display

This clamshell notebook comes with a 1080p touch display, but you can opt to go with non-touch 1080p or 4K option if you don't think you'll use your fingers much for pointing. It's a big display, allowing you to multitask easier, but the relatively thick bezel is raised and has an edge. I've seen this type of bezel on other ThinkPads, and I've seen the glue come unstuck along the bottom for an unsightly (and dirt-collecting) gap. It's not happening here yet, but it's something to consider.

The FHD models hit about 250 nits brightness — the 4K option should hit about 300 nits — so you might find that you can't go bright enough when working in a well-lit room. Color isn't stellar either, and testing reproduction I got back 64 percent sRGB and 48 percent AdobeRGB. For a business laptop, these results aren't particularly surprising, but this laptop does cost nearly $2,000, and it would be nice to see something with a better picture. You can get an X1 Carbon in the same price range, for example, and it has 100 percent sRGB and AdobeRGB.

Overall it's not an awful display, especially for productivity purposes. I used it mainly for word processing and web browsing and didn't have a problem with it, but if you want to get into some multimedia editing — there is an optional NVIDIA MX150 2GB graphics card (GPU) available — you'll start to notice the lack of color.

Lenovo ThinkPad T580 keyboard and touchpad

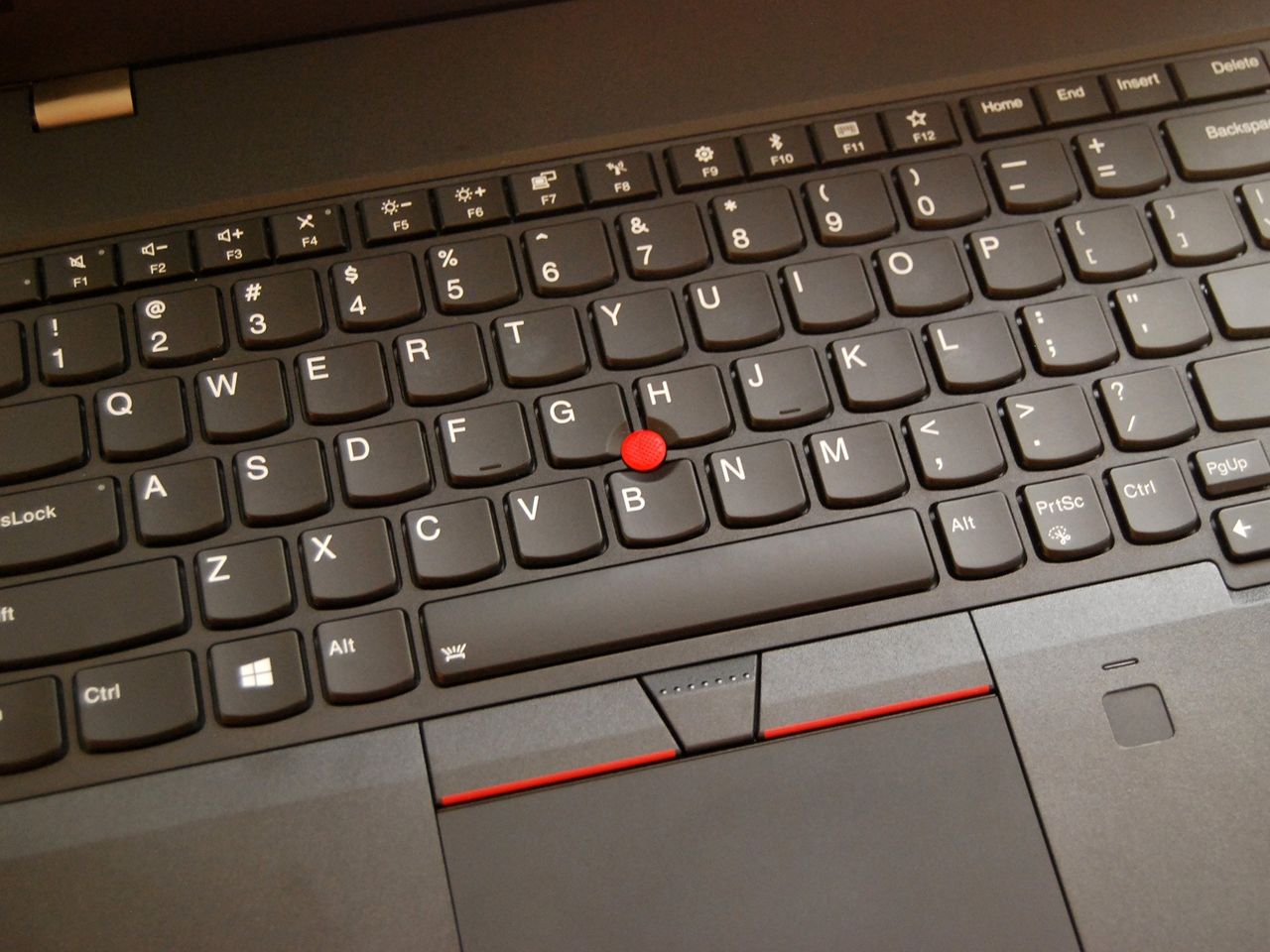

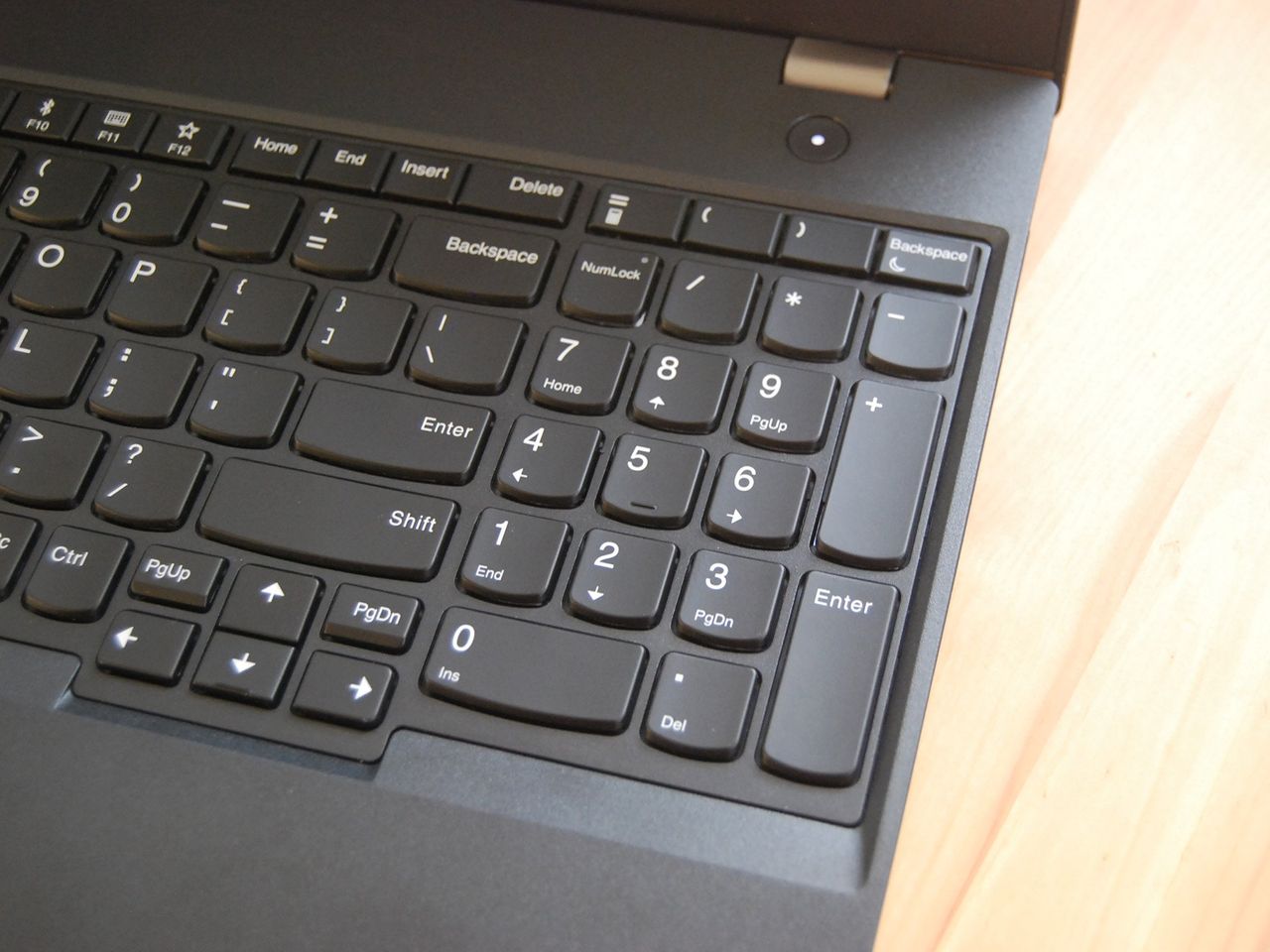

It's tough to complain about the keyboard on a ThinkPad, and here is no different. Keys have ample travel for a comfortable day, and they feel soft while still making a click. The size of the T580 allows for a full number pad, and otherwise, you get a full range of functions attached to the F keys. There's a three-stage backlight for working in the dark, and overall it's classic ThinkPad quality.

The Precision touchpad uses Microsoft's drivers for full Windows 10 gesture support, and while it works flawlessly and it's appropriately sized, its off-center placement bugs me. I understand it has to line up with the middle of the keyboard for the TrackPoint system — that red nub and physical buttons — to work correctly, but it's nevertheless irksome.

The bottom line here is that the T580 is ready to handle your typing and pointing comfortably. When under a deadline, you won't have to worry about your hardware slowing you down.

Lenovo ThinkPad T580 performance

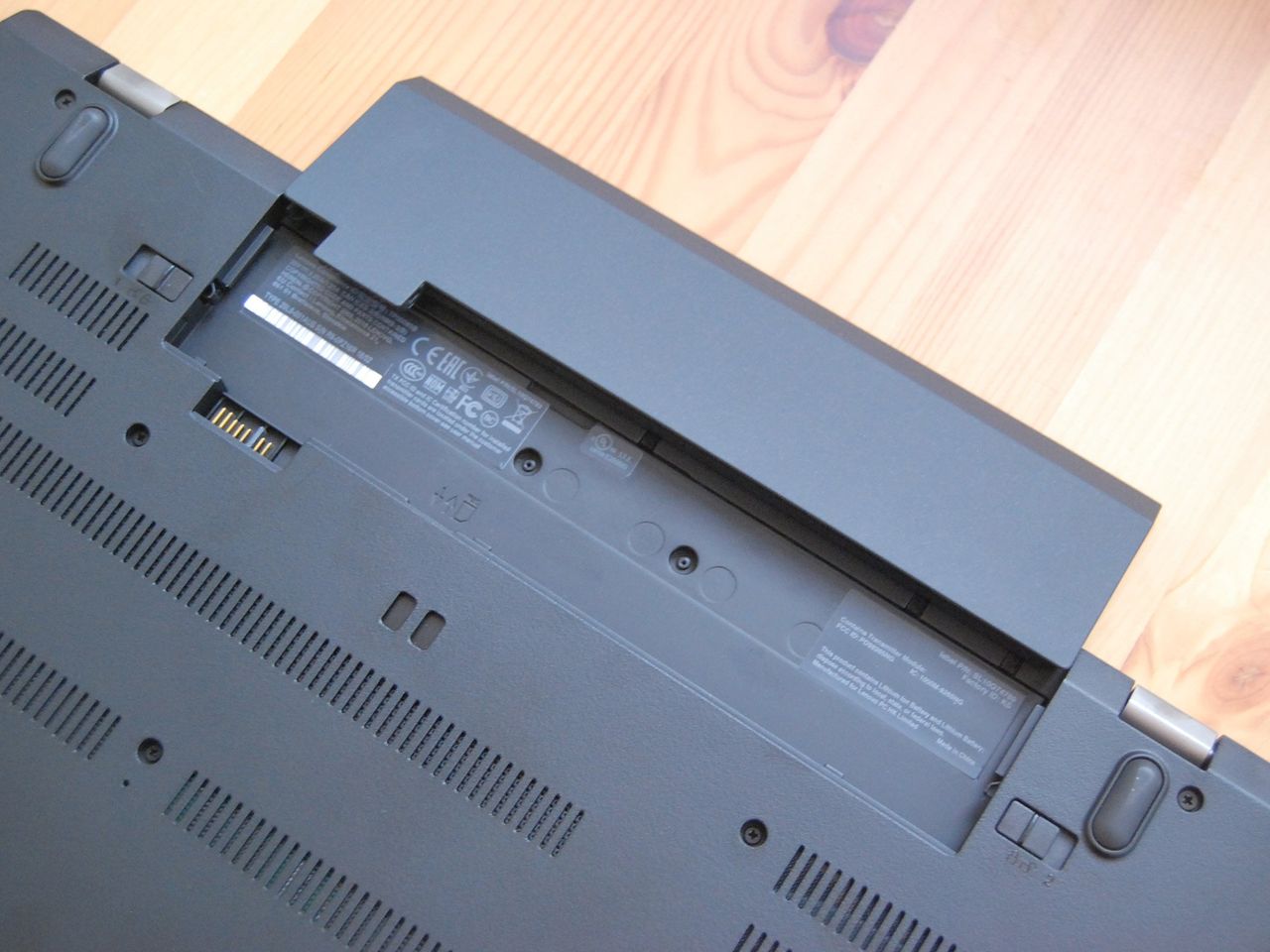

Unlike some other ThinkPads, Lenovo has kept a hot-swappable bridge battery system in play here. This means that you can switch out a dead battery for a full battery without shutting down your PC, perfect for when you have to hit a deadline or when you're on a long-haul flight. The T580 has a built-in 32 Wh battery with a secondary external battery available in three sizes. I have the 24 Wh pack here, but there's also 48 Wh ($15 extra) and 72 Wh ($35 extra) options at checkout. Unfortunately, the battery combination here doesn't offer much life. I got about five hours when using the laptop normally, so you'll want to splurge for the larger batteries to get a full day from a single charge.

The tradeoff here is stellar performance. The 8th Gen Core i7 CPU is a beast, and 16GB of DDR4 RAM doesn't hold it back, but the fan seems to have to work often to keep the laptop cool. When it's on, you'll notice it.

CPU

Geekbench 4.0 benchmarks (higher is better)

Swipe to scroll horizontally
DeviceCPUSingle coreMulti core
Lenovo ThinkPad T580i7-8650U4,92014,636
HP ZBook 15u G5i7-8650U4,85316,075
Lenovo ThinkPad T480i5-8250U3,94012,559
Lenovo ThinkPad T470i5-7300U4,3948,580
Lenovo ThinkPad X1 Tableti7-8650U4,97114,289
Microsoft Surface Proi7-7660U4,5139,346
Lenovo ThinkPad X1 Carboni7-8650U5,02514,178
Dell XPS 13 (9370)i7-8550U4,68114,816
Lenovo Yoga 730 13i5-8250U4,17813,354
Lenovo ThinkPad X280i5-8250U4,06113,017
LG gram 15i7-8550U5,03312,906
Samsung Notebook 9 Pro 15i7-7500U4,4318,669

Nothing out of the ordinary here. The 8th Gen Core i7 CPU performs well, essentially matching performance in the X1 Carbon and X1 Tablet. You'll be able to handle multiple tasks at once with ease, especially backed up by 16GB of RAM.

GPU

Geekbench 4.0 OpenCL (higher is better)

Swipe to scroll horizontally
DeviceCompute score
Lenovo ThinkPad T58018,879
HP ZBook 15u G5 (AMD)42,071
Lenovo ThinkPad T48018,245
Lenovo ThinkPad T47021,276
Lenovo ThinkPad X1 Tablet22,211
Microsoft Surface Pro30,678
Lenovo Yoga 730 1321,000
Lenovo ThinkPad X28021,142
LG gram 1522,334
Samsung Notebook 9 Pro 1519,769

Integrated Intel UHD graphics perform up to standards here, and there's an optional NVIDIA MX150 GPU with 2GB of GDDR5 VRAM if you'd like a bit of extra power.

PCMark

PCMark (Home Conventional 3.0)

Swipe to scroll horizontally
DeviceScore
Lenovo ThinkPad T5803,451
HP ZBook 15u G53,323
Lenovo ThinkPad T4803,254
Lenovo ThinkPad T4703,103
Lenovo ThinkPad X1 Tablet3,059
Microsoft Surface Pro3,055
Lenovo Yoga 730 133,121
Lenovo ThinkPad X2803,335
LG gram 153,395
Samsung Notebook 9 Pro 153,542

The PCMark Home Conventional test measures how well the hardware in a laptop works together to accomplish usual tasks. The T580 beat out most of the other laptops we've recently reviewed, and this performance can be seen every time you sit down to use the laptop.

SSD

CrystalDiskMark (higher is better)

Swipe to scroll horizontally
DeviceReadWrite
Lenovo ThinkPad T5801,743.7 MB/s1,683.2 MB/s
HP ZBook 15u G53,448.0 MB/s1,566.4 MB/s
Lenovo ThinkPad T4801,738.1 MB/s1,174.9 MB/s
Lenovo ThinkPad T4701,079 MB/s716.1 MB/s
Lenovo ThinkPad X1 Tablet3,398.1 MB/s1,946.6 MB/s
Microsoft Surface Pro1,284 MB/s963 MB/s
Lenovo Yoga 730 132,790.6 MB/s506.8 MB/s
Lenovo ThinkPad X2803,366.1 MB/s1,901.5 MB/s
LG gram 15554.1 MB/s449.6 MB/s
Samsung Notebook 9 Pro 15549.9 MB/s519.3 MB/s

Lenovo uses a Samsung PM981 M.2 SSD here, with a PCIe bus for fast transfer speeds. Read speeds aren't much higher than write speeds here, but it's still zippy storage that won't hinder your productivity.

Lenovo ThinkPad T580 review conclusion

The ThinkPad T580 has a lot going for it, including excellent performance, comfortable typing experience, durable build, and lots of ports. It has the security features you expect from a business laptop, and the hot-swappable battery system makes it easy to plan for a long flight or time in the field. Unfortunately, the built-in battery coupled with the standard 24 Wh battery only gets about five hours of life, so you'll want to chip in the extra cash for a larger external option. The 72 Wh battery will stick out the bottom of your laptop, but it will deliver the most life.

Like a lot of business laptops, the T580's display isn't very bright, and it has weak color reproduction. If you're interested in a bit of multimedia editing, you might want to look elsewhere, but for productivity purposes, it will do fine.

Who is this laptop for?

Overall this is a fine laptop if you need the 15.6-inch form factor for screen real estate, plus it has the hardware inside that allows for serious multitasking. The hot-swappable battery system can be used when you're away from your desk for extended periods (there's also optional LTE support), and security features are designed to handle your sensitive data better. As long as you don't expect a display with excellent color reproduction or excellent battery life from the stock options, this should prove to be a good laptop.

See at Lenovo

Pros

  • Hot-swappable battery
  • Excellent performance
  • Keyboard can't be beat
  • User accessible and upgradeable
  • Well-rounded port selection
  • Plenty of configurations available

Cons

  • Short battery life
  • Dim display
  • Poor color reproduction
