XPG Levante 360 AIO review: Stellar cooling performance for Intel and AMD processors

Smart RGB lighting meets impressive Asetek cooling performance.

XPG Levante 360 AIO
(Image: © Rich Edmonds / Windows Central)

ADATA has taken its range of XPG Levante AIO CPU coolers to a new level with the launch of the XPG Levante 360. As the name suggests, it's an AIO with a 360mm radiator, which should provide decent performance when paired with even an Intel Core i9 or AMD Ryzen 9 processor.

Like with most PC brands, we're looking at an Asetek design that should perform in line with other 360mm radiator AIOs available, utilizing Asetek's Gen 7 pump. We're continuously impressed by AIO solutions based on this Asetek design and have yet to find one that doesn't perform well.

ADATA added some of its own features to differentiate the XPG Levante 360 from the competition, but are these enough to make it a contender for the best AIO CPU cooler, and should you buy one for your next PC build?

XPG Levante 360 AIO: Price and availability

XPG Levante 360 AIO

Source: Rich Edmonds / Windows Central (Image credit: Source: Rich Edmonds / Windows Central)

The XPG Levante 360 AIO has an MSRP of $180. This is a premium price for an all-in-one liquid CPU cooler with a massive 360mm radiator. Then there's the RGB block with three 120mm RGB fans.

Compared to competitor AIO coolers, you can find some more affordable coolers at just above $100 or high-end solutions at $300.

XPG Levante 360 AIO: What's good

XPG Levante 360 AIO

Source: Rich Edmonds / Windows Central (Image credit: Source: Rich Edmonds / Windows Central)
Swipe to scroll horizontally
CategoryXPG Levante 360 AIO
PumpAsetek Pump (Gen 7)800-2800 RPM
CPU blockRGB LEDsPlastic, copper
Fans3x 120mm

ADATA includes everything you'll need to add the XPG Levante 360 to a PC build. There are brackets and necessary screws for AMD and Intel platforms, including support for 12th Gen processors. There's an ARGB controller that can be connected to your RGB fans and block, but this step is completely optional, and I'd recommend hooking them up to your motherboard if possible.

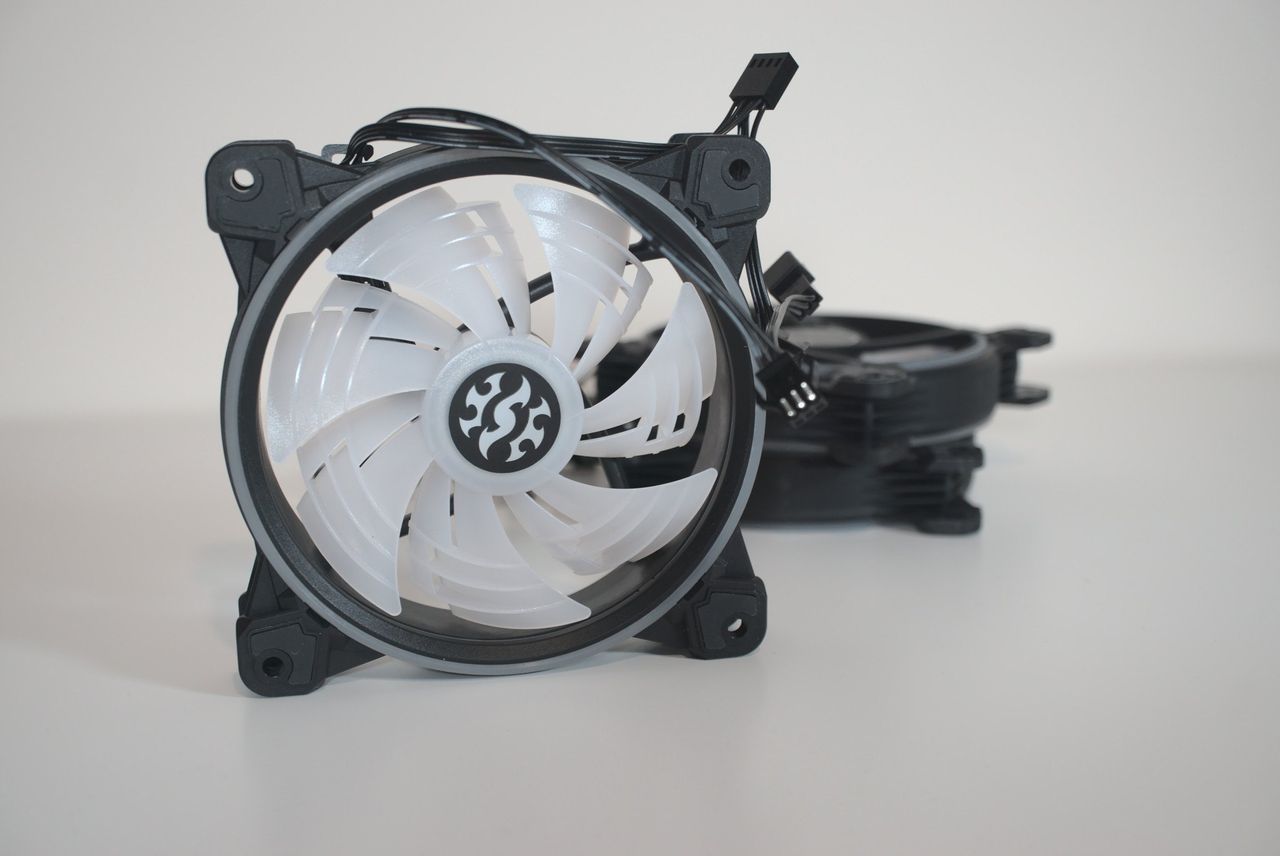

Everything inside the packaging is well packed, aside from the fans, which are inside loose cardboard cut-outs. I'd prefer to see these fans inside actual boxes, but this is a small nitpick as nothing was damaged in transit. Speaking of fans, I'm a big fan of these 120mm blowers from ADATA.

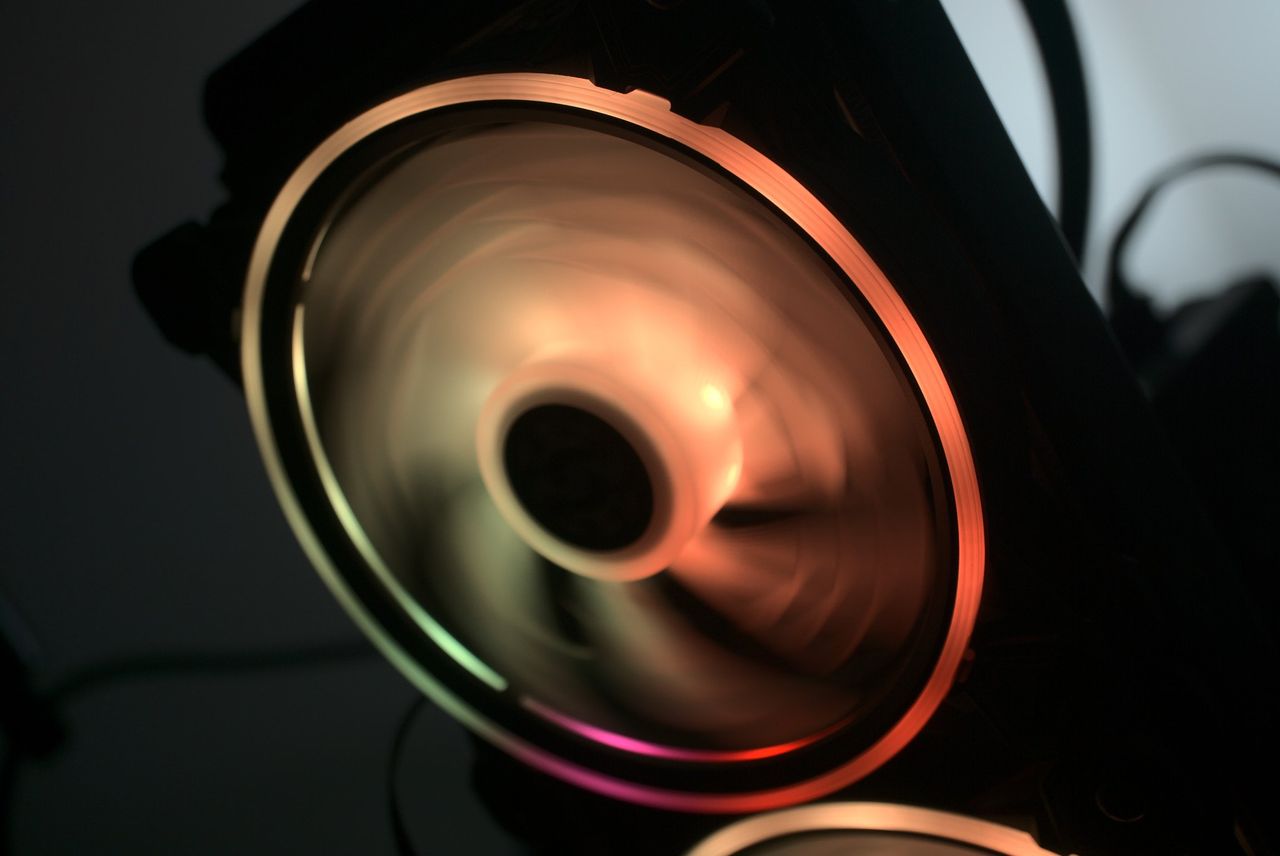

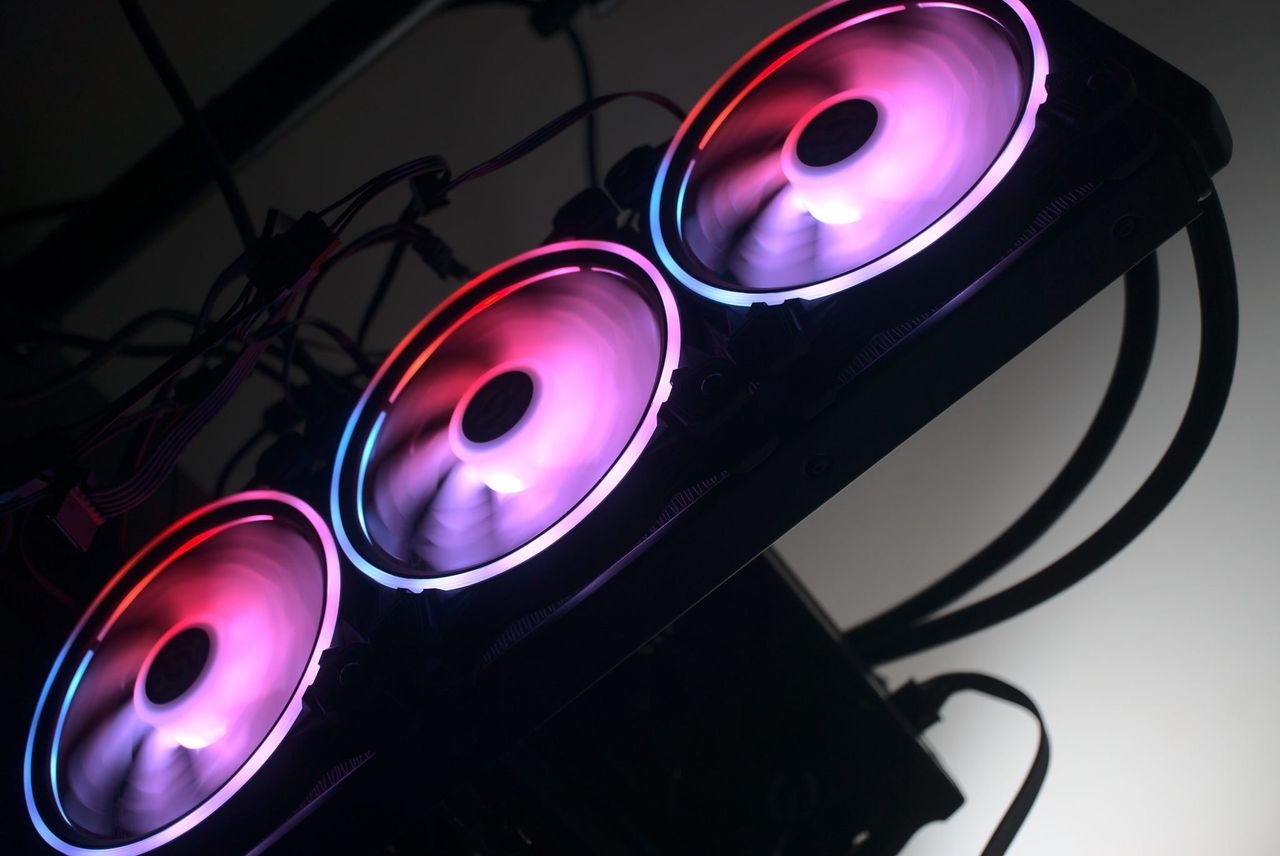

They have RGB lights in the outer frame, as well as the inner housing. This creates quite the visual effect with the frame and blades glowing in rainbow colors. The rest of the AIO looks similar to other Asetek design solutions. You've got an all-black style with an aluminum radiator and copper-based CPU block.

Once installed, the XPG Levante 360 looks sleek and will happily keep your CPU cool.

Since ADATA didn't do anything extravagant with its CPU block, it's compact and shouldn't cause issues with even the most restricted PC cases. Once installed, it looks sleek. The installation process is painless, regardless of whether you're with Intel or AMD. Using the ASUS ROG X570-E Gaming and MSI Z690 Carbon WiFi, the cooler was installed without a problem.

Cabling can be a real pain to deal with when you've got three fans with RGB lighting since you'll have a total of six connections. Some brands make it easier to manage and others simply don't both at all, luckily ADATA is in the former camp. The fans can daisy chain with RGB and PWM/power connections, resulting in just two cables that need to go to the motherboard.

For AMD, we tested the AIO with an AMD Ryzen 9 5950X and for Intel, we used an Intel Core i9-12900K. Both are flagship processors and will pump out more heat than anything else without going into enthusiast territory. For testing, all three fans were set to 50% and pump speed was set to full without PWM control.

Swipe to scroll horizontally
Temp testsIntel Core i9-12900KAMD Ryzen 9 5950X
Idle (OC)23C73F25C77F
Gaming (OC)52C126F55C131F
Stress (OC)89C192F78C172F

You're not going to be hitting stress-level temperatures unless you're running some serious synthetic benchmark software like Cinebench R23. Gaming temperatures, even when overclocked, were extremely good and never passed 60C. Considering just how many cores are inside each processor, this makes the XPG Levante 360 a perfect match for Intel and AMD PCs.

XPG Levante 360 AIO: What's not good

XPG Levante 360 AIO

Source: Rich Edmonds / Windows Central (Image credit: Source: Rich Edmonds / Windows Central)

As aforementioned, I would have liked to have seen better fan packaging so the cables aren't loose inside the box. Other brands use boxes or plastic bags for each fan, and that would have been a good move here. Like other Asetek Gen 7 pumps, this XPG cooler can get a little loud when at higher RPM, though inside a case you won't notice any noise atop of case fans.

There's also no fan on the CPU water block. This can be a nuisance in attributing to higher motherboard component (including voltage regulator modules) temperatures. If your PC case has ample airflow with numerous case blowers, you should be fine, but this will be something to bear in mind when overclocking.

XPG Levante 360 AIO: Competition

ASUS Ryujin II 360 AIO

Source: Rich Edmonds / Windows Central (Image credit: Source: Rich Edmonds / Windows Central)

The closest competition to the XPG Levante 360 is an AIO that follows the Asetek design with a Gen 7 pump, which is the majority of AIOs from brands. We recently reviewed the ASUS ROG Ryujin II 360, which has similar specifications, aside from the ASUS cooler coming with an integrated screen and fan on the main water pump block.

If you don't fancy spending too much and getting a fancy display on the water CPU block, there are excellent 360mm AIOs like the NZXT Kraken Z73 that keeps it simpler with some RGB fans and block. Again, this AIO is considerably more expensive than ADATA's XPG Levante 360.

Performance between these AIOs is going to largely be identical (within the margin of error) simply because they're using the same pump and radiator setup. It should boil down to how much you want to spend, as well as which design you prefer the look of and which ecosystem you may already be part of.

XPG Levante 360 AIO: Should you buy it?

XPG Levante 360 AIO

Source: Rich Edmonds / Windows Central (Image credit: Source: Rich Edmonds / Windows Central)

You should buy this if ...

  • You want to overclock your CPU
  • You want your CPU to run cooler
  • You want to add some RGB lighting
  • You want a somewhat affordable 360mm AIO

You shouldn't buy this if ...

  • You don't have a case that can take a 360mm radiator
  • You already struggle with airflow inside the PC case
  • You don't want RGB fans or AIO pump block

You should buy this CPU cooler if you plan to buy an Intel Core i9 and AMD Ryzen 9 processor or do some overclocking. It supports all modern processors, comes with everything you need to create a striking PC build with RGB lighting, and has a high enough thermal capacity for powerful rigs.

The XPG Levante 360 is an Asetek AIO. That means it performs extremely well and is great for most Intel and AMD PC builds. Performance is about as expected and is almost identical to other AIOs, taking into account some margin of error. I am a big fan (I'll stop now, promise) of the fans ADATA includes with its AIO coolers.

They perform well, don't make too much noise, and I love how the RGB lighting is designed. If your PC case has space for a large 360mm radiator and you plan on using at least an Intel Core i9 or AMD Ryzen 9, this is a cooler that should be shortlisted. If you have a motherboard with an ARGB header, that further sweetens this already tasty deal.
